T247
HYDRO-STATIC PIPEBURSTER
Designers note:
"Self-contained unit, which includes; on board electric crane for easy rod handling and on-board hydraulic rod spinner.
Depending on pipe size, the T247 can operate from within a standard 4-meter trench box”
247 metric tons of pulling power
Ø150 mm. → Ø800 mm. operational range
Pipe materials: Can operate in all known pipe materials
T247 Hydro-Static Pipeburster
Video introduction
Tools

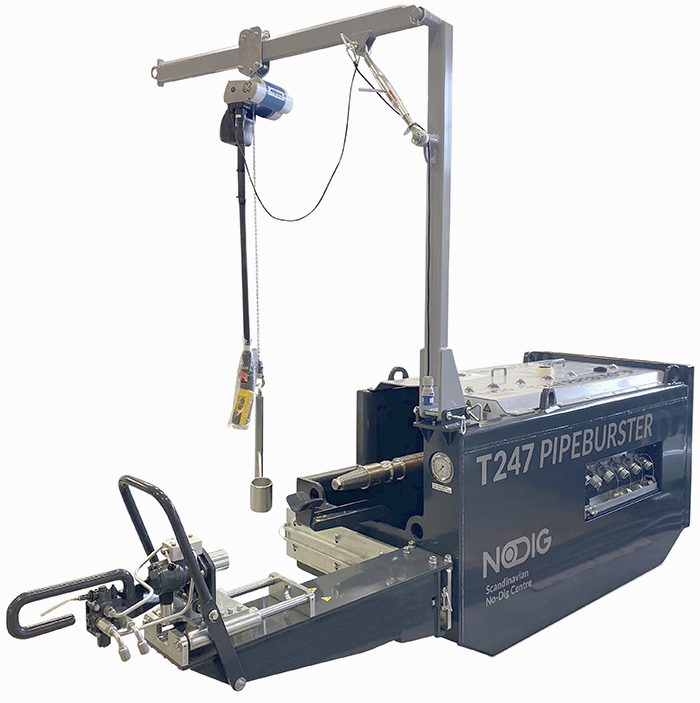

T247 ARS
T247 ARS
Hydraulic rod spinner.
Hydraulic power pack
Hydraulic power pack

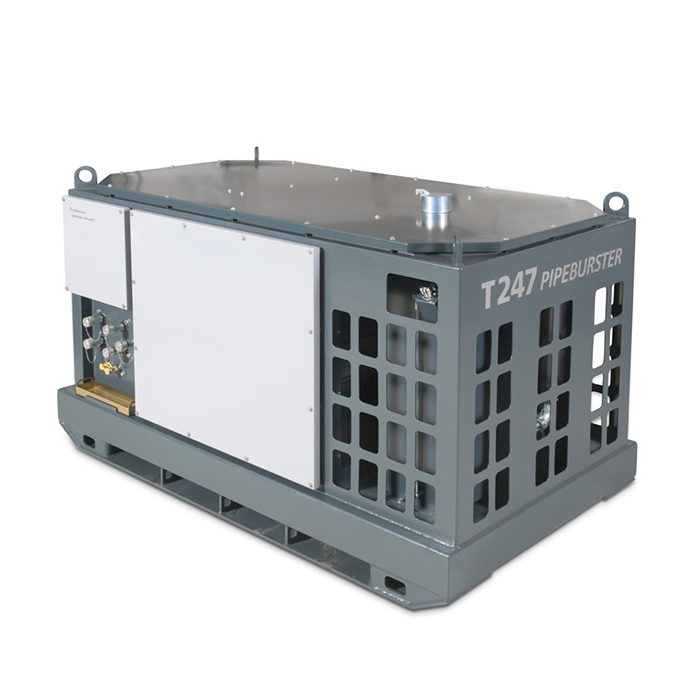

T247 power pack. Volvo Penta diesel with turbo / Intercooler.
T247 steel rod system
T247 steel rod system
Ø105 mm. x 1.00 meter long. Handled by on-board electrical crane.
Video manuals
Download PDF
Specifications
Pulling unit
Power pack
Steel rods
Steel rods
247 metric tons
( 544542 lbs. )
Measurements
222 x 110 x 115 cm.
( 86.6 x 43.3 x 45.3 inch. )
270 x 150 x 165 cm.
( 106.3 x 59.1 x 65 inch. )
Ø105 mm. x 1.0 meter
( 4.1 x 39.4 inch. )
Weight
4000 kg.
( 8818 lbs. )
3500 kg.
( 7716 lbs. )
Ø105 mm. steel rod; 64 kg.
( 141 lbs. )
Engine
VOLVO PENTA DIESEL
Inter cooler / turbo charged.
143 bhp. / 105 kW.
Fuel cap. 300 ltr.
( 65.99 gal. )
Air compressor system
240 volt outlet ( 1200 w )
Hydraulic system
3 cylinders
250 bar / 3625 psi.
Hydraulic oil cap. 600 ltr.
( 131.98 gal. )
Variable pump flow:
160 ltr. / min.
( 35.2 gal. / min. )
Measured at 2000 rpm. / min.
Operational speed
Up to 2.0 meter. / min.
( 6.6 ft. / min. )
Stroke; 50 cm.
( 19.9 inch. )
Operational range,
Existing pipe diameter
Ø150 mm. → Ø800 mm.
( 5.9 → 31.5 inch. )
Download PDF
